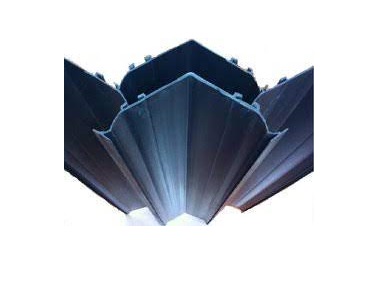

Tube settlers also called as lamella clarifiers, are used to remove solids in the waste water treatment. Tube settlers are single PVC profiles combined to tubes. This design multiplies the sedimentation area up to 15 times per square meter surface area and helps to improve sedimentation in w ater and wastewater treatment plants.
• Most common and widely accepted tube settler design
• Easy and quick to install as per site conditions
• Can be transported in the form of loose tubes and hence
saves transportation cost
• Due to tongue and groove mechanism, it requires no special
training to install at site
• High specific settling area
• Only bottom support structure required to install.
| PROPERTY | Value |
|---|---|
| Model No. | TS 4150 |
| MOC | PVC, UV Stabilized |
| Shape | Hexagon Chevron |
| Fitting | Tongue and groove |
| Thickness | 1mm +/- 0.1mm |
| Plan Settling Area (at 60 degrees slope) | 11 m2/m3 |
| Plan Settling Area (at 55 degrees slope) | 13 m2/m3 |
| Cross sectional area | 120mm x 44mm |
| Hydraulic Radius | 1.7 cm |
| Maximum Continuous Operating Temperature | 55° C |
| Storage | To be kept away from direct sunlight |
| Vertical module height (H/mm) | 500 mm – 1500 mm |
| Contin. operation temp. Max operation temp. PVC (°C) | 55°C |
